Adaptive Congestion Control

This infographic illustrates the three core mechanisms of “Adaptive Congestion Control,” showcasing how an eBPF-based controller goes beyond simple packet filtering to actively and intelligently manage network congestion in real-time.

1. Dynamic Shaping (Left Panel / Blue)

  • Keywords: Real-time Traffic Shaping, Bandwidth Reallocation
  • Description: Depicts an eBPF robot operating “Variable Flow Restrictors.” It performs real-time traffic shaping by dynamically adjusting the bandwidth allocated to standard traffic flows. It effectively narrows the path for regular packets to make room when critical VIP traffic needs to pass through.

2. Proactive Prevention (Center Panel / Green)

  • Keywords: Pre-emptive Control, ECN Handling, Anticipated Spikes
  • Description: Shows eBPF robots equipped with shields and radars, indicating the ability to foresee “Anticipated Spikes” in traffic. It handles ECN (Explicit Congestion Notification) to pre-emptively control flow and maintain balanced network buffers before overflow occurs. The bottom section visualizes VIP (All-Reduce) traffic bypassing standard traffic smoothly, akin to an ambulance clearing a traffic jam.

3. State-aware Control (Right Panel / Orange)

  • Keywords: Contextual Policies, Topology & App-awareness
  • Description: Illustrates the eBPF chip receiving data from both the “Cluster Topology” and the “Application Context.” This means the controller doesn’t just look at packets blindly; it enforces Dynamic Policies based on a holistic understanding of the AI application’s state and hardware layout, ultimately resulting in “No Bottlenecks” and “Stable Latency.”

📝 Summary

This diagram clearly visualizes the complete mechanism of Adaptive Congestion Control, where the eBPF controller 1) dynamically shapes bandwidth in real-time, 2) proactively prevents congestion by anticipating spikes, and 3) acts with full topology and application awareness to ensure uninterrupted, optimized network performance for AI workloads.

#AdaptiveCongestionControl #DynamicShaping #ProactivePrevention #StateAwareControl #eBPF #ECN #TrafficShaping #AINetworkOptimization

With Gemini

eBPF Traffic Controller Core Technologies

This section illustrates the control phase where mixed application traffic (Multi-source Stream) is intercepted at the lowest level of the OS, analyzed, and sorted into multiple lanes based on priority to ensure an optimized traffic flow into the network fabric.

  • eBPF Core (XDP & TC) [Kernel-level Packet Control]
    • Keywords: Kernel-level Intervention, Zero-overhead
    • Core: The central eBPF module containing classifiers and probes that intercept and detect multi-source traffic at lightning speed at the very bottom of the NIC kernel stack (XDP/TC).
  • Traffic Classification Logic (Powered by eBPF Maps) [Real-time Classification]
    • Keywords: Deep Inspection, eBPF Maps
    • Core: An intelligent routing logic that analyzes the packet’s payload and context. It uses high-speed eBPF Maps in kernel space to share traffic rules in real-time with the AI control plane.
  • Multi-lane Priority Queuing System [Priority-based Shaping]
    • Keywords: Traffic Shaping, VIP Queue, No GPU Stall
    • Core: The system that assigns the classified traffic into distinct lanes based on operational criticality.
      • High Priority (ALL-REDUCE/VIP): A dedicated ultra-fast lane for critical AI synchronization data (All-Reduce, All-Gather, Reduce-Scatter). Delays here cause complete GPU starvation (stalls), so this traffic is processed immediately.
      • Medium/Low Priority: Standard communication and bulk/checkpoint data are relegated to lower queues to prevent them from interfering with the VIP stream.

📝 Summary (Summary)

The eBPF Traffic Controller acts as an intelligent traffic cop inside the OS kernel. By identifying potential bottlenecks early and aggressively steering vital collective communication data (like All-Reduce) into Fast Priority Queues (VIP), it completely eliminates GPU starvation and ensures continuous, high-efficiency model training.

#eBPF #TrafficController #XDP_TC #PriorityQueuing #ZeroGPUStall #AllReduce #AllGather #NetworkOptimization

With Gemini

Distributed Training Optimization : Network Traffic Control (eBPF)

The diagram, titled “Distributed Training Optimization: Network Traffic Control,” outlines a core 3-stage optimization pipeline. It logically unfolds the process of identifying and solving the problem following the top flow path: Bottleneck ➡️ Fast Priority Queuing ➡️ Congestion Control for Transmission.

1. Massive Parallel GPU Workloads

  • Visual Description: The red section on the left and the illustration below it depict “Diverse Data” pouring out from multiple GPU cluster nodes and converging into a single, narrow bottleneck.
  • Core Meaning: It illustrates the Data Synchronization traffic that is essential during the Distributed Training of AI models. It structurally highlights the inevitable network bottleneck that occurs when countless GPUs attempt to exchange computational results simultaneously.

2. eBPF Traffic Controller

  • Visual Description: The central blue section introduces the core control engine designed to resolve the aforementioned bottleneck. The lower illustration shows complex traffic being neatly sorted into three pipes (priority lanes) at the OS Kernel Driver layer.
  • Core Meaning: It demonstrates Kernel-level Intervention, allowing access to network packets without massive overhead. Following the Traffic Classification logic, the system implements Priority Queuing: mission-critical traffic directly affecting training speed (like All-Reduce) is routed to the top ‘High Priority (VIP)’ queue, while standard storage traffic goes to the ‘Low Priority’ queue.

3. Adaptive Congestion Control

  • Visual Description: The green section on the right depicts the dynamic management of queued traffic as it is transmitted into the actual network fabric. The illustration shows eBPF agents adjusting valves in real-time (Dynamic Shaping), predicting and preventing network spikes (Proactive Prevention), and maintaining stable traffic flow based on the overall application context (State-aware Control).
  • Core Meaning: Beyond simple prioritization, it proactively monitors network switch buffer states and overall infrastructure congestion to flexibly adjust transmission rates. Ultimately, this creates a flawless, optimized data flow with zero latency.

📝 Summary

This diagram visualizes the complete pipeline for maximizing communication efficiency in AI data centers. To resolve the inevitable network bottlenecks caused by AI distributed training, it introduces an eBPF-based traffic controller operating at the lowest kernel level to prioritize traffic, and executes adaptive congestion control reflecting real-time network states to ensure seamless data transmission.

#AIDataCenter #eBPF #DistributedTraining #TrafficControl #InfrastructureEngineering #GPUCluster #AIOps #NetworkOptimization

With Gemini

AI Flame Graphs (eBPF)

📊 AI Flame Graphs (eBPF) Architecture Diagram Interpretation

This diagram visually unfolds three logical stages (Problem Identification, Technical Solution, and Derived Results) based on the core theme stated at the top: “Tracks bottlenecks caused by CPU-GPU asynchronous execution.”.

1. 🔴 Problem Identification (Left Red Section) This area highlights the fundamental issue of losing visibility due to asynchronous processing.

  • Disconnected Execution Flow: The gray blocks illustrate the execution stack, where commands originating from the Application (PyTorch) pass through the C++ Runtime, down to the Kernel Driver, and finally to the GPU Hardware.
  • Asynchronous Nature: The large downward arrow on the left emphasizes that this entire process occurs “asynchronously between the CPU and GPU.”
  • Resulting Limitation: As stated in the orange box at the bottom, when actual GPU Wait Gaps or EU Stalls occur, tracing the root cause back to the upper-level application code becomes inherently and extremely difficult.

2. 🔵 Technical Solution (Center Blue Section) This area explains the eBPF-based data correlation approach used to resolve the aforementioned visibility issues.

  • Intervention Layer: A green block with an arrow points directly to the ‘Kernel Driver’ layer in the left column. This indicates that low-overhead eBPF Probes are strategically inserted precisely at the OS Kernel Driver layer.
  • Correlation Mechanism: The bottom box outlines the technical remedy: it bridges the disconnected context by “Simultaneously capturing and correlating CPU command submissions with GPU hardware counters,” effectively linking the CPU’s actions with the GPU’s reactions in real-time.

3. 🟢 Derived Results (Right Green Section) This area demonstrates the foundation for integrated visualization and automated analysis achieved through eBPF application.

  • Integrated Visualization: It shows how previously isolated CPU call stacks and GPU execution delays are unified into a single Flame Graph for intuitive and cohesive analysis.
  • Operational Impact: Ultimately, it highlights how this technology empowers automated systems to instantly pinpoint and resolve the root causes of data center performance bottlenecks.

📌 Summary

This diagram is a structural overview of how eBPF technology resolves asynchronous bottlenecks between CPUs and GPUs in AI workloads. It clearly explains the process of inserting low-overhead eBPF probes at the kernel level to correlate disconnected execution data. By unifying this data into a single ‘Flame Graph,’ it provides the foundation for automated systems to perform real-time root cause analysis and infrastructure optimization.

#eBPF #FlameGraph #GPUOptimization #PerformanceProfiling #InfrastructureEngineering #SystemArchitecture

With Gemini

Linux with ML

From Claude with some prompting
This image illustrates the process of utilizing Machine Learning (ML) and AutoML techniques for system optimization in Linux.

It starts with collecting data through profiling techniques that gather statistics on CPU, memory, I/O, network resource usage, hardware counters, scheduling information, etc. Tracing is also employed to capture kernel/system/interrupt events and process call traces.

The collected data is then used to train machine learning models. This step requires analysis and verification by Linux system experts.

The trained models help determine optimal values, which are then applied to optimize various system components such as the scheduler, memory management, network traffic, and disk I/O. Optimization can also target security and automation aspects.

The eBPF (Enhanced Berkeley Packet Filter) sandbox, situated in the center, allows safe execution within the kernel, enabling eBPF programs to interact with the kernel.

Kernel modules provide another way to implement optimization logic and integrate it directly into the kernel.

Finally, kernel parameters can be tuned from user space to perform optimizations.

In summary, the image depicts an AutoML-based process that leverages data collection, machine learning modeling, deriving optimal values, eBPF, kernel modules, and parameter tuning to automate system optimization in Linux across various kernel subsystems like the scheduler, memory management, network, and disk I/O.C

JIT(for eBPF) at Linux K6

From DALL-E with some prompting

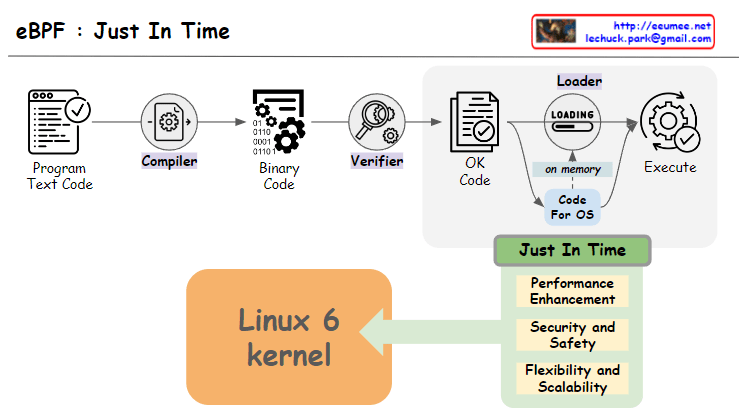

The image underscores the role of Just-In-Time (JIT) compilation in the execution process of eBPF (extended Berkeley Packet Filter) code within Linux Kernel 6. Text code is transformed into binary code via a compiler, followed by verification for security and stability. Once verified, the code is loaded into memory for execution. JIT compilation plays a crucial part in this process by optimizing the code in real-time for enhanced performance. eBPF and JIT compilation have been integrated into Linux Kernel 6, serving as fundamental features that bolster performance, security, flexibility,
