Parallelism (1) – Data , Expert

Posted on 2025-11-262025-11-25 by lechuck park

Parallelism Comparison: Data Parallelism vs Expert Parallelism

This image compares two major parallelization strategies used for training large language models (LLMs).

Left: Data Parallelism

Structure:

Data is divided into multiple batches from the database
Same complete model is replicated on each GPU
Each GPU independently processes different data batches
Results are aggregated to generate final output

Characteristics:

Scaling axis: Number of batches/samples
Pattern: Full model copy on each GPU, dense training
Communication: Gradient All-Reduce synchronization once per step
Advantages: Simple and intuitive implementation
Disadvantages: Model size must fit in single GPU memory

Right: Expert Parallelism

Structure:

Data is divided by layers
Tokens are distributed to appropriate experts through All-to-All network and router
Different expert models (A, B, C) are placed on each GPU
Parallel processing at block/thread level in GPU pool

Characteristics:

Scaling axis: Number of experts
Pattern: Sparse structure – only few experts activated per token
Goal: Maintain large capacity while limiting FLOPs per token
Communication: All-to-All token routing
Advantages: Can scale model capacity significantly (MoE – Mixture of Experts architecture)
Disadvantages: High communication overhead and complex load balancing

Key Differences

Aspect	Data Parallelism	Expert Parallelism
Model Division	Full model replication	Model divided into experts
Data Division	Batch-wise	Layer/token-wise
Communication Pattern	Gradient All-Reduce	Token All-to-All
Scalability	Proportional to data size	Proportional to expert count
Efficiency	Dense computation	Sparse computation (conditional activation)

These two approaches are often used together in practice, enabling ultra-large-scale model training through hybrid parallelization strategies.

Summary

Data Parallelism replicates the entire model across GPUs and divides the training data, synchronizing gradients after each step – simple but memory-limited. Expert Parallelism divides the model into specialized experts and routes tokens dynamically, enabling massive scale through sparse activation. Modern systems combine both strategies to train trillion-parameter models efficiently.

#MachineLearning #DeepLearning #LLM #Parallelism #DistributedTraining #DataParallelism #ExpertParallelism #MixtureOfExperts #MoE #GPU #ModelTraining #AIInfrastructure #ScalableAI #NeuralNetworks #HPC

Mixture-of-Experts (MoE) DeepSeek-v3

Posted on 2025-11-252025-11-21 by lechuck park

Image Interpretation: DeepSeek-v3 Mixture-of-Experts (MoE)

This image outlines the key technologies and performance efficiency of the DeepSeek-v3 model, which utilizes the Mixture-of-Experts (MoE) architecture. It is divided into the architecture diagram/cost table on the left and four key technical features on the right.

1. DeepSeekMoE Architecture (Left Diagram)

The diagram illustrates how the model processes data:

Separation of Experts: Unlike traditional MoEs, it distinguishes between Shared Experts (Green) and Routed Experts (Blue).
- Shared Experts: Always active to handle common knowledge.
- Routed Experts: Selectively activated by the Router to handle specific, specialized features.
Workflow: When an input (u^t) arrives, the Router selects the top-$K$ experts (Top-K^r). The system processes the input through both shared and selected routed experts in parallel and combines the results.

2. Four Key Technical Features (Right Panel)

This section explains how DeepSeek-v3 overcomes the limitations of existing MoE models:

Load Balancing without Auxiliary Loss:
- Problem: Standard MoEs often use “auxiliary loss” to balance expert usage, which can degrade performance.
- Solution: It uses learnable bias terms in the router to ensure balance. This bias only affects “dispatching” (where data goes) and not the actual “weights” (calculation values), preserving model quality.
Shared Expert Design:
- Concept: Keeping one or a few experts always active for general tasks allows the routed experts to focus purely on complex, specialized tasks.
- Benefit: Reduces redundancy and improves the capacity utilization of experts.
Hardware-Aware Dual-Pipe Parallelism:
- Efficiency: It fully overlaps All-to-All communication with computation, minimizing idle time.
- Optimization: “Node-local expert routing” is used to minimize slow data transfers between different nodes.
FP8 Mixed-Precision Training:
- Speed & Cost: Utilizes the tensor cores of modern GPUs (Hopper/Blackwell) for full FP8 (8-bit floating point) training. This drastically lowers both training and inference costs.

3. Cost Efficiency Comparison (Table 2)

The comparison highlights the massive efficiency gain over dense models:

DeepSeek-V3 MoE (671B parameters): Despite having the largest parameter count, its training cost is extremely low at 250 GFLOPS/Token.
LLaMa-405B Dense (405B parameters): Although smaller in size, it requires ~10x higher cost (2448 GFLOPS/Token) compared to DeepSeek-v3.
Conclusion: DeepSeek-v3 achieves “high performance at low cost” by massively scaling the model size (671B) while keeping the actual computation equivalent to a much smaller model.

Summary

Hybrid Structure: DeepSeek-v3 separates “Shared Experts” for general knowledge and “Routed Experts” for specialized tasks to maximize efficiency.
Optimized Training: It achieves high speed and balance using “Load Balancing without Auxiliary Loss” and “FP8 Mixed-Precision Training.”
Extreme Efficiency: Despite a massive 671B parameter size, it offers roughly 10x lower training costs per token compared to similar dense models (like LLaMa-405B).

#DeepSeek #AI #MachineLearning #MoE #MixtureOfExperts #LLM #DeepLearning #TechTrends #ArtificialIntelligence #ModelArchitecture

With Gemini

MoE & More

Posted on 2025-10-142025-10-13 by lechuck park

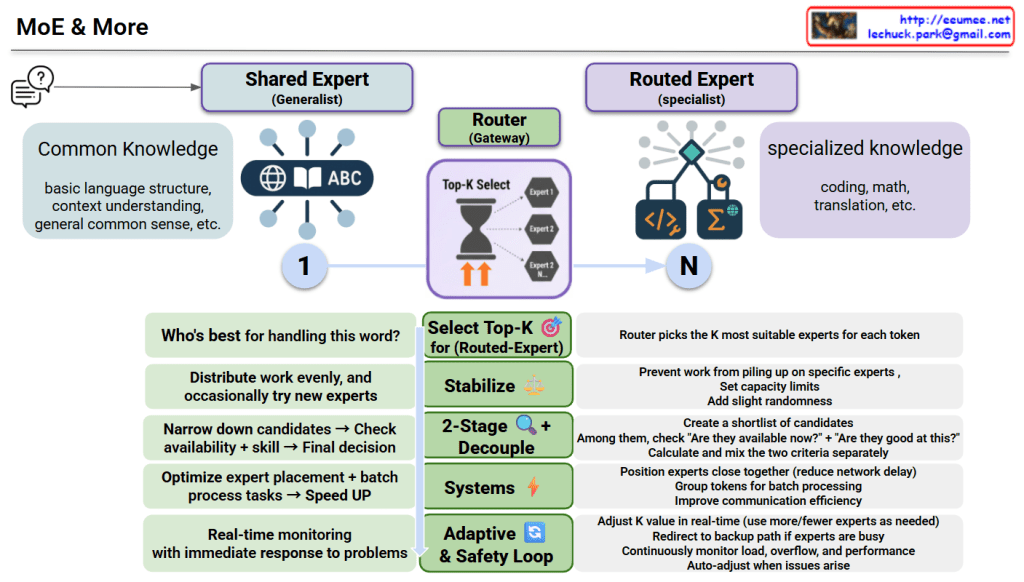

MoE & More – Architecture Interpretation

This diagram illustrates an advanced Mixture of Experts (MoE) model architecture.

Core Structure

1. Two Types of Experts

Shared Expert (Generalist)
- Handles common knowledge: basic language structure, context understanding, general common sense
- Applied universally to all tokens
Routed Expert (Specialist)
- Handles specialized knowledge: coding, math, translation, etc.
- Router selects the K most suitable experts for each token

2. Router (Gateway) Role

For each token, determines “Who’s best for handling this word?” by:

Selecting K experts out of N available specialists
Using Top-K selection mechanism

Key Optimization Techniques

Select Top-K 🎯

Chooses K most suitable routed experts
Distributes work evenly and occasionally tries new experts

Stabilize ⚖️

Prevents work from piling up on specific experts
Sets capacity limits and adds slight randomness

2-Stage Decouple 🔍

Creates a shortlist of candidate experts
Separately checks “Are they available now?” + “Are they good at this?”
Calculates and mixes the two criteria separately before final decision
Validates availability and skill before selection

Systems ⚡

Positions experts close together (reduces network delay)
Groups tokens for batch processing
Improves communication efficiency

Adaptive & Safety Loop 🔄

Adjusts K value in real-time (uses more/fewer experts as needed)
Redirects to backup path if experts are busy
Continuously monitors load, overflow, and performance
Auto-adjusts when issues arise

Purpose

This system enhances both efficiency and performance through:

Optimized expert placement
Accelerated batch processing
Real-time monitoring with immediate problem response

Summary

MoE & More combines generalist experts (common knowledge) with specialist experts (domain-specific skills), using an intelligent router to dynamically select the best K experts for each token. Advanced techniques like 2-stage decoupling, stabilization, and adaptive safety loops ensure optimal load balancing, prevent bottlenecks, and enable real-time adjustments for maximum efficiency. The result is a faster, more efficient, and more reliable AI system that scales intelligently.

#MixtureOfExperts #MoE #AIArchitecture #MachineLearning #DeepLearning #LLM #NeuralNetworks #AIOptimization #ScalableAI #RouterMechanism #ExpertSystems #AIEfficiency #LoadBalancing #AdaptiveAI #MLOps

With Claude
