1. Core Components (Left Panel)

The left side outlines the fundamental building blocks of a DPU, detailing how tasks are distributed across its hardware:

Control Plane (Multi-core ARM CPU): Operates independently from the host server, running a localized OS and infrastructure management services.
Data Path (Hardware Accelerators with FPGA): Utilizes specialized silicon to handle heavy, repetitive tasks like packet processing, cryptography, and data compression at wire-speed without latency.
I/O Ports (Network Interfaces): Correction Note: The description text in your image here is accidentally duplicated from the “Data Path” section. Ideally, this should note the physical connections, such as high-bandwidth Ethernet or InfiniBand (100G/400G+), designed to ingest massive data center traffic.
PCIe Gen 4/5/6 (Host Interface): Provides the high-bandwidth, low-latency bridge connecting the DPU to the host’s CPU and GPUs.

2. Key Use Cases (Right Panel)

The right side highlights how these hardware components translate into tangible infrastructure benefits:

Network Offloading: Shifts complex network protocols (OVS, VxLAN, RoCE) away from the host CPU, reserving those critical compute cycles entirely for AI workloads.
Storage Acceleration: Leverages NVMe-oF to disaggregate storage, allowing the server to access remote storage arrays with the same low latency and high throughput as local drives.
Security Offloading: Enforces Zero Trust and micro-segmentation directly at the server edge by performing inline IPsec/TLS encryption and firewalling.
Bare-Metal Isolation: Creates an “air-gapped” environment that physically separates tenant applications from infrastructure management, eliminating the need for management agents on the host OS.

Summary

This infographic perfectly illustrates how DPUs transform server architectures by offloading critical network, storage, and security tasks to specialized hardware. By isolating infrastructure management from core compute resources, DPUs maximize overall efficiency, making them an indispensable foundation for a high-performance AI Data Center Integrated Operations Platform.

#DPU #DataProcessingUnit #NetworkOffloading #SmartNIC #FPGA #ZeroTrust #CloudInfrastructure

New infra age

Posted on 2024-04-23 by lechuck park

From Claude with some prompting
This image illustrates the surge in data and the advancement of AI technologies, particularly parallel processing techniques that efficiently handle massive amounts of data. As a result, there is a growing need for infrastructure technologies that can support such data processing capabilities. Technologies like big data processing, parallel processing, direct memory access, and GPU computing have evolved to meet this demand. The overall flow depicts the data explosion, the advancement of AI and parallel processing techniques, and the evolution of supporting infrastructure technologies.

DPU

Posted on 2024-04-22 by lechuck park

From Claude with some prompting
The image illustrates the role of a Data Processing Unit (DPU) in facilitating seamless and delay-free data exchange between different hardware components such as the GPU, NVME (likely referring to an NVMe solid-state drive), and other devices.

The key highlight is that the DPU enables “Data Exchange Parallely without a Delay” and provides “Seamless” connectivity between these components. This means the DPU acts as a high-speed interconnect, allowing parallel data transfers to occur without any bottlenecks or latency.

The image emphasizes the DPU’s ability to provide a low-latency, high-bandwidth data processing channel, enabling efficient data movement and processing across various hardware components within a system. This seamless connectivity and delay-free data exchange are crucial for applications that require intensive data processing, such as data analytics, machine learning, or high-performance computing, where minimizing latency and maximizing throughput are critical.

==================

The key features of the DPU highlighted in the image are:

Data Exchange Parallely: The DPU allows parallel data exchange without delay or bottlenecks, enabling seamless data transfer.
Interconnection: The DPU interconnects different components like the GPU, NVME, and other devices, facilitating efficient data flow between them.

The DPU aims to provide a high-speed, low-latency data processing channel, enabling efficient data movement and computation between various hardware components in a system. This can be particularly useful in applications that require intensive data processing, such as data analytics, machine learning, or high-performance computing.Cop

Processing UNIT

Posted on 2024-03-042024-03-04 by lechuck park

From DALL-E With some prompting

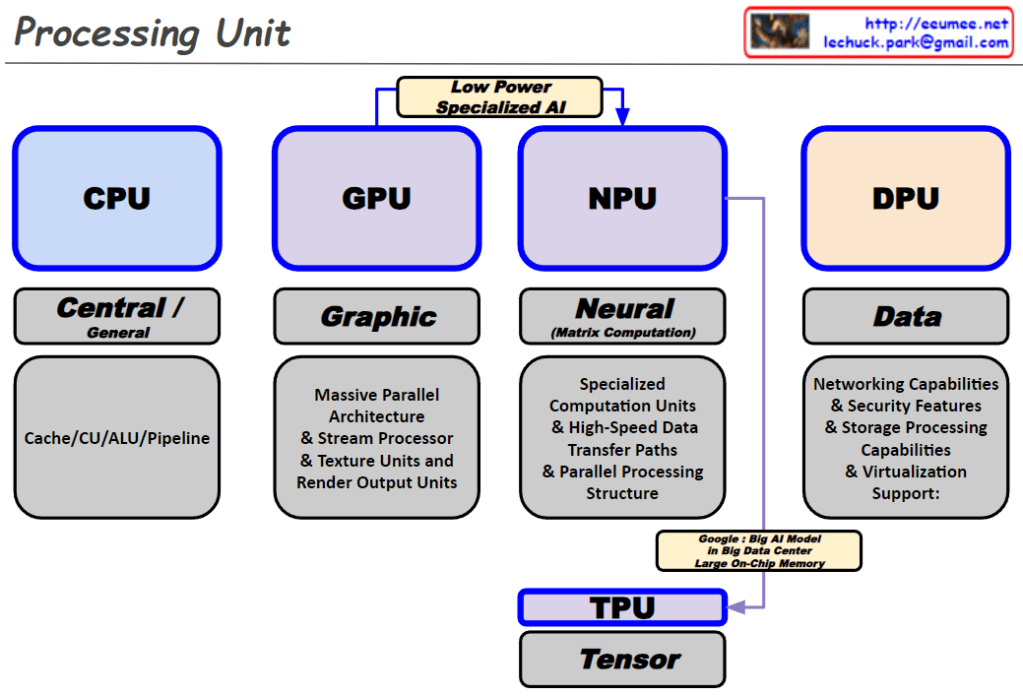

Processing Unit

CPU (Central Processing Unit): Central / General
- Cache/Control Unit (CU)/Arithmetic Logic Unit (ALU)/Pipeline
GPU (Graphics Processing Unit): Graphic
- Massive Parallel Architecture
- Stream Processor & Texture Units and Render Output Units
NPU (Neural Processing Unit): Neural (Matrix Computation)
- Specialized Computation Units
- High-Speed Data Transfer Paths
- Parallel Processing Structure
DPU (Data Processing Unit): Data
- Networking Capabilities & Security Features
- Storage Processing Capabilities
- Virtualization Support
TPU (Tensor Processing Unit): Tensor
- Tensor Cores
- Large On-Chip Memory
- Parallel Data Paths

Additional Information:

NPU and TPU are differentiated by their low power, specialized AI purpose.
TPU is developed by Google for large AI models in big data centers and features large on-chip memory.

The diagram emphasizes the specialized nature of NPU and TPU for AI tasks, highlighting their low power consumption and specialized computation capabilities, particularly for neural and tensor computations. It also contrasts these with the more general-purpose capabilities of CPUs and the graphic processing orientation of GPUs. DPU is presented as specialized for handling data-centric tasks involving networking, security, and storage in virtualized environments.
