AI Triangle

Posted on 2026-01-052026-01-04 by lechuck park

📐 The AI Triangle: Core Pillars of Evolution

1. Data: The Fuel for AI

Data serves as the essential raw material that determines the intelligence and accuracy of AI models.

Large-scale Datasets: Massive volumes of information required for foundational training.
High-quality/High-fidelity: The emphasis on clean, accurate, and reliable data to ensure superior model performance.
Data-centric AI: A paradigm shift focusing on enhancing data quality rather than just iterating on model code.

2. Algorithms: The Brain of AI

Algorithms provide the logical framework and mathematical structures that allow machines to learn from data.

Deep Learning (Neural Networks): Multi-layered architectures inspired by the human brain to process complex information.
Pattern Recognition: The ability to identify hidden correlations and make predictions from raw inputs.
Model Optimization: Techniques to improve efficiency, reduce latency, and minimize computational costs.

3. Infrastructure: The Backbone of AI

The physical and digital foundation that enables massive computations and ensures system stability.

Computing Resources (IT Infra):
- HPC & Accelerators: High-performance clusters utilizing GPUs, NPUs, and HBM/PIM for parallel processing.
Physical Infrastructure (Facilities):
- Power Delivery: Reliable, high-density power systems including UPS, PDU, and smart energy management.
- Thermal Management: Advanced cooling solutions like Liquid Cooling and Immersion Cooling to handle extreme heat from AI chips.
- Scalability & PUE: Focus on sustainable growth and maximizing energy efficiency (Power Usage Effectiveness).

📝 Summary

The AI Triangle represents the vital synergy between high-quality Data, sophisticated Algorithms, and robust Infrastructure.
While data fuels the model and algorithms provide the logic, infrastructure acts as the essential backbone that supports massive scaling and operational reliability.
Modern AI evolution increasingly relies on advanced facility management, specifically optimized power delivery and high-efficiency cooling, to sustain next-generation workloads.

#AITriangle #AIInfrastructure #DataCenter #DeepLearning #GPU #LiquidCooling #DataCentric #Sustainability #PUE #TechArchitecture

With Gemini

AI Processing Logic: Patterns vs. Unique Entities

Posted on 2026-01-03 by lechuck park

This infographic illustrates the fundamental difference in how AI processes language. It shows that AI excels at understanding General Nouns (like “apple” or “car”) because they are built on strong, repeated contextual patterns. In contrast, AI struggles with Proper Nouns (like specific names) due to weak connections and a lack of context, often leading to hallucinations. The visual suggests a solution: converting unique entities into Numbers or IDs, which offer the clear logic and precision that AI models prefer over ambiguous text.

With Gemini

SRAM, DRAM, HBM

Posted on 2026-01-02 by lechuck park

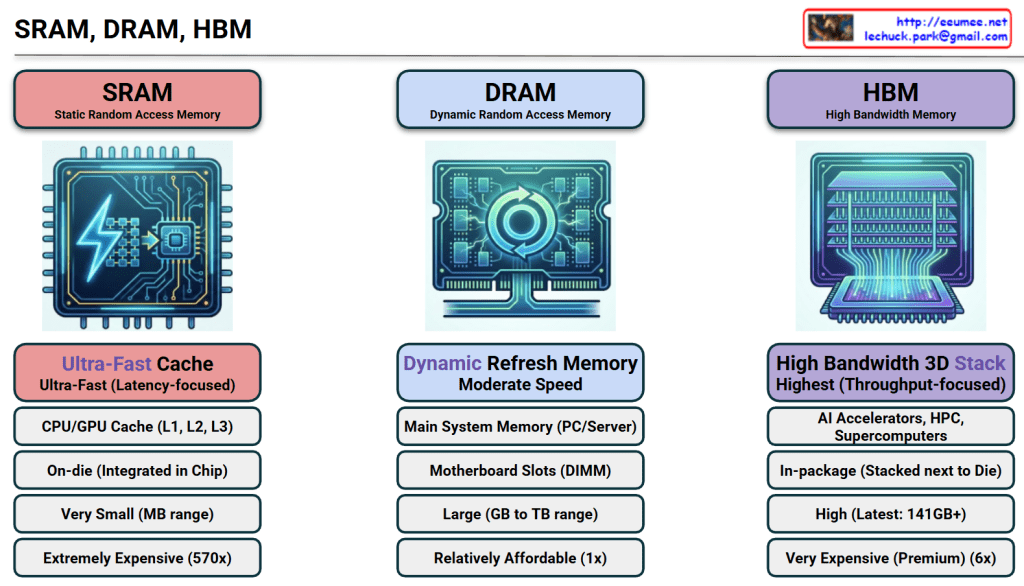

The image provides a comprehensive comparison of SRAM, DRAM, and HBM, which are the three pillars of modern memory architecture. For an expert in AI infrastructure, this hierarchy explains why certain hardware choices are made to balance performance and cost.

1. SRAM (Static Random Access Memory)

Role: Ultra-Fast Cache. It serves as the immediate storage for the CPU/GPU to prevent processing delays.
Location: On-die. It is integrated directly into the silicon of the processor chip.
Capacity: Very small (MB range) due to the large physical size of its 6-transistor structure.
Cost: Extremely Expensive (~570x vs. DRAM). This is the “prime real estate” of the semiconductor world.
Key Insight: Its primary goal is Latency-focus. It ensures the most frequently used data is available in nanoseconds.

2. DRAM (Dynamic Random Access Memory)

Role: Main System Memory. It is the standard “workspace” for a server or PC.
Location: Motherboard Slots (DIMM). It sits externally to the processor.
Capacity: Large (GB to TB range). It is designed to hold the OS and active applications.
Cost: Relatively Affordable (1x). It serves as the baseline for memory pricing.
Key Insight: It requires a constant “Refresh” to maintain data, making it “Dynamic,” but it offers the best balance of capacity and price.

3. HBM (High Bandwidth Memory)

Role: AI Accelerators & Supercomputing. It is the specialized engine behind modern AI GPUs like the NVIDIA H100.
Location: In-package. It is stacked vertically (3D Stack) and placed right next to the GPU die on a silicon interposer.
Capacity: High (Latest versions offer 141GB+ per stack).
Cost: Very Expensive (Premium, ~6x vs. DRAM).
Key Insight: Its primary goal is Throughput-focus. By widening the data “highway,” it allows the GPU to process massive datasets (like LLM parameters) without being bottlenecked by memory speed.

📊 Technical Comparison Summary

Feature	SRAM	DRAM	HBM
Speed Type	Low Latency	Moderate	High Bandwidth
Price Factor	570x	1x (Base)	6x
Packaging	Integrated in Chip	External DIMM	3D Stacked next to Chip

💡 Summary

SRAM offers ultimate speed at an extreme price, used exclusively for tiny, critical caches inside the processor.
DRAM is the cost-effective “standard” workspace used for general system tasks and large-scale data storage.
HBM is the high-bandwidth solution for AI, stacking memory vertically to feed data-hungry GPUs at lightning speeds.

#SRAM #DRAM #HBM3e #AIInfrastructure #GPUArchitecture #Semiconductor #DataCenter #HighBandwidthMemory #TechComparison

with Gemini

2026 and

Posted on 2026-01-01 by lechuck park

Human Rules Always

Posted on 2025-12-312025-12-31 by lechuck park

The Evolutionary Roadmap to Human-Optimized AI

This diagram visualizes the history and future direction of intelligent systems. It illustrates the evolution from the era of manual programming to the current age of generative AI, and finally to the ultimate goal where human standards perfect the technology.

1. The 3 Stages of Technological Evolution (Top Flow)

Stage 1: Rule-Based (The Foundation / Past)
- Concept: “The Era of Human-Defined Logic”
- Context: This represents the starting point of computing where humans explicitly created formulas and coded every rule.
- Characteristics: It is 100% Deterministic. While accurate within its scope, it cannot handle the complexity of the real world beyond what humans have manually programmed.
Stage 2: AI LLM (The Transition / Present)
- Concept: “The Era of Probabilistic Scale”
- Context: We have evolved into the age of massive parallel processing and Large Language Models.
- Characteristics: It operates on 99…% Probability. It offers immense scalability and creativity that rule-based systems could never achieve, but it lacks the absolute certainty of the past, occasionally leading to inefficiencies or hallucinations.
Stage 3: Human Optimized AI (The Final Goal / Future)
- Concept: “The Era of Reliability & Efficiency”
- Context: This is the destination we must reach. It is not just about using AI, but about integrating the massive power of the “Present” (AI LLM) with the precision of the “Past” (Rule-Based).
- Characteristics: By applying human standards to control the AI’s massive parallel processing, we achieve a system that is both computationally efficient and strictly reliable.

2. The Engine of Evolution: Human Standards (Bottom Box)

This section represents the mechanism that drives the evolution from Stage 2 to Stage 3.

The Problem: Raw AI (Stage 2) consumes vast energy and can be unpredictable.
The Solution: We must re-introduce the “Human Rules” (History, Logic, Ethics) established in Stage 1 into the AI’s workflow.
The Process:
- Constraint & Optimization: Human Cognition and Rules act as a pruning mechanism, cutting off wasteful parallel computations in the LLM.
- Safety: Ethics ensure the output aligns with human values.
Result: This filtering process transforms the raw, probabilistic energy of the LLM into the polished, “Human Optimized” state.

3. The Feedback Loop (Continuous Evolution)

Dashed Line: The journey doesn’t end at Stage 3. The output from the optimized AI is reviewed by humans, which in turn updates our rules and ethical standards. This circular structure ensures that the AI continues to evolve alongside human civilization.

This diagram declares that the future of AI lies not in discarding the old “Rule-Based” ways, but in fusing that deterministic precision with modern probabilistic power to create a truly optimized intelligence.

#AIEvolution #FutureOfAI #HybridAI #DeterministicVsProbabilistic #HumanInTheLoop #TechRoadmap #AIArchitecture #Optimization #ResponsibleAI

Infiniband vs RoCE v2

Posted on 2025-12-30 by lechuck park

This image provides a technical comparison between InfiniBand and RoCE v2 (RDMA over Converged Ethernet), the two dominant networking protocols used in modern AI data centers and High-Performance Computing (HPC) environments.

1. Architectural Philosophy

InfiniBand (Dedicated Hardware): Designed from the ground up specifically for high-throughput, low-latency communication. It is a proprietary ecosystem largely driven by NVIDIA (Mellanox).
RoCE v2 (General-Purpose + Optimization): An evolution of standard Ethernet designed to bring RDMA (Remote Direct Memory Access) capabilities to traditional network infrastructures. It is backed by the Open Consortium.

2. Hardware vs. Software Logic

Hardwired ASIC (InfiniBand): The protocol logic is baked directly into the silicon. This “Native” approach ensures consistent performance with minimal jitter.
Firmware & OS Dependent (RoCE v2): Relies more heavily on the NIC’s firmware and operating system configurations, making it more flexible but potentially more complex to stabilize.

3. Data Transfer Efficiency

Ultra-low Latency (InfiniBand): Utilizes Cut-through switching, where the switch starts forwarding the packet as soon as the destination address is read, without waiting for the full packet to arrive.
Encapsulation Overhead (RoCE v2): Because it runs on Ethernet, it must wrap RDMA data in UDP/IP/Ethernet headers. This adds “overhead” (extra data bits) and processing time compared to the leaner InfiniBand frames.

4. Reliability and Loss Management

Lossless by Design (InfiniBand): It uses a credit-based flow control mechanism at the hardware level, ensuring that a sender never transmits data unless the receiver has room to buffer it. This guarantees zero packet loss.
Tuning-Dependent (RoCE v2): Ethernet is natively “lossy.” To make RoCE v2 work effectively, the network must be “Converged” using complex features like PFC (Priority Flow Control) and ECN (Explicit Congestion Notification). Without precise tuning, performance can collapse during congestion.

5. Network Management

Subnet Manager (InfiniBand): Uses a centralized “Subnet Manager” to discover the topology and manage routing, which simplifies the management of massive GPU clusters.
Distributed Control (RoCE v2): Functions like a traditional IP network where routing and control are distributed across the switches and routers.

Comparison Summary

Feature	InfiniBand	RoCE v2
Primary Driver	Performance & Stability	Cost-effectiveness & Compatibility
Complexity	Plug-and-play (within IB ecosystem)	Requires expert-level network tuning
Latency	Absolute Lowest	Low (but higher than IB)
Scalability	High (specifically for AI/HPC)	High (standard Ethernet scalability)

Design & Logic: InfiniBand is a dedicated, hardware-native solution for ultra-low latency, whereas RoCE v2 adapts general-purpose Ethernet for RDMA through software-defined optimization and firmware.

Efficiency & Reliability: InfiniBand is “lossless by design” with minimal overhead via cut-through switching, while RoCE v2 incurs encapsulation overhead and requires precise network tuning to prevent packet loss.

Control & Management: InfiniBand utilizes centralized hardware-level management (Subnet Manager) for peak stability, while RoCE v2 relies on distributed software-level control over standard UDP/IP/Ethernet stacks.

#InfiniBand #RoCEv2 #RDMA #AIDataCenter #NetworkingArchitecture #NVIDIA #HighPerformanceComputing #GPUCluster #DataCenterDesign #Ethernet #AITraining
